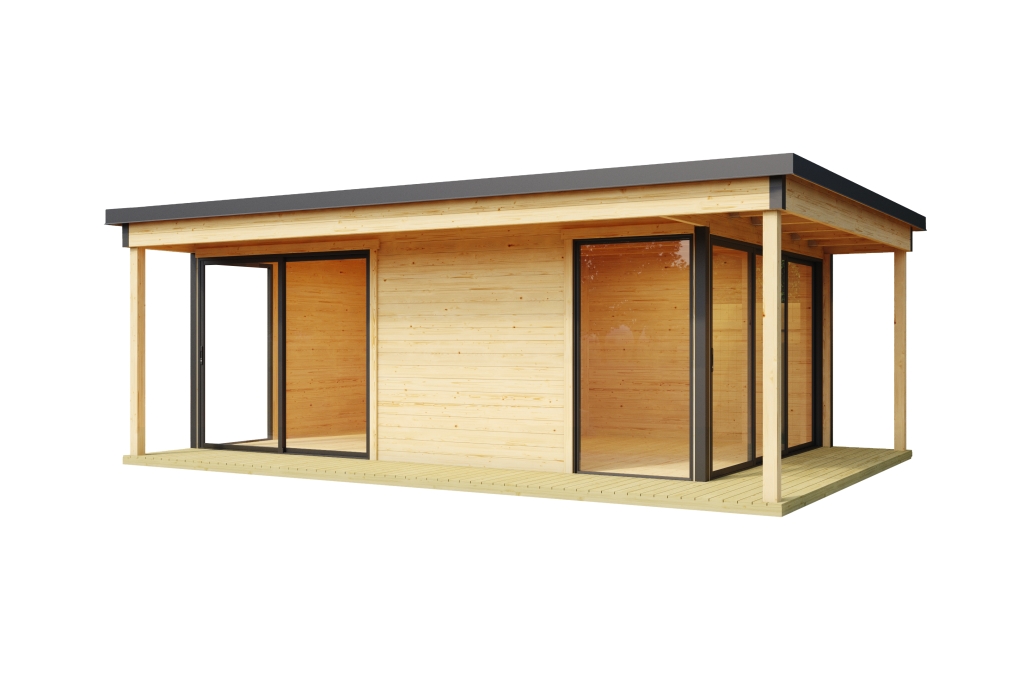

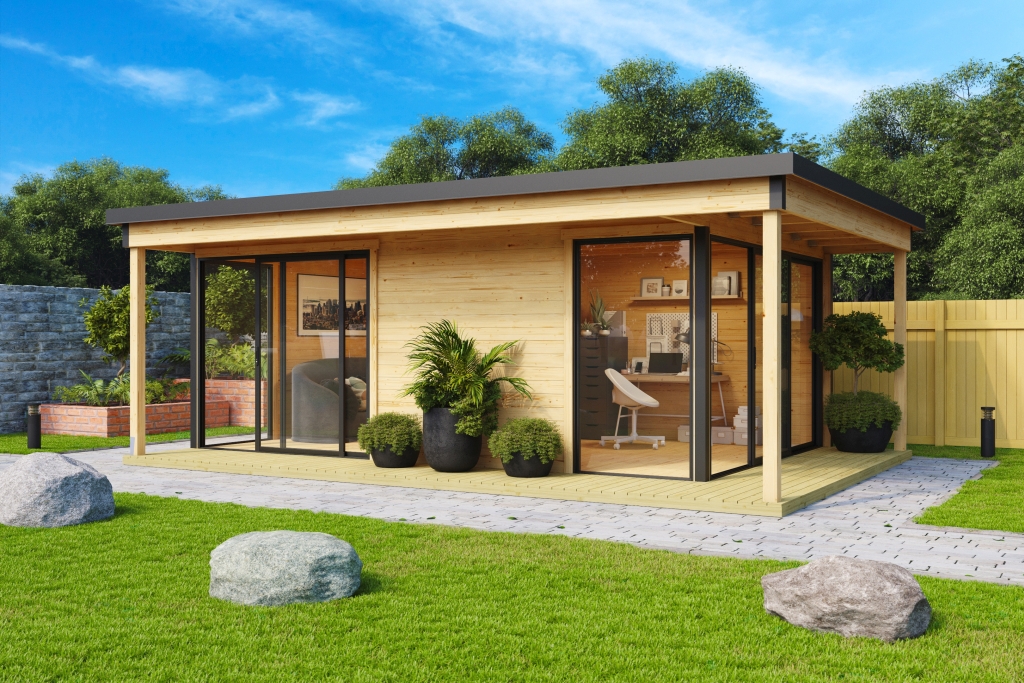

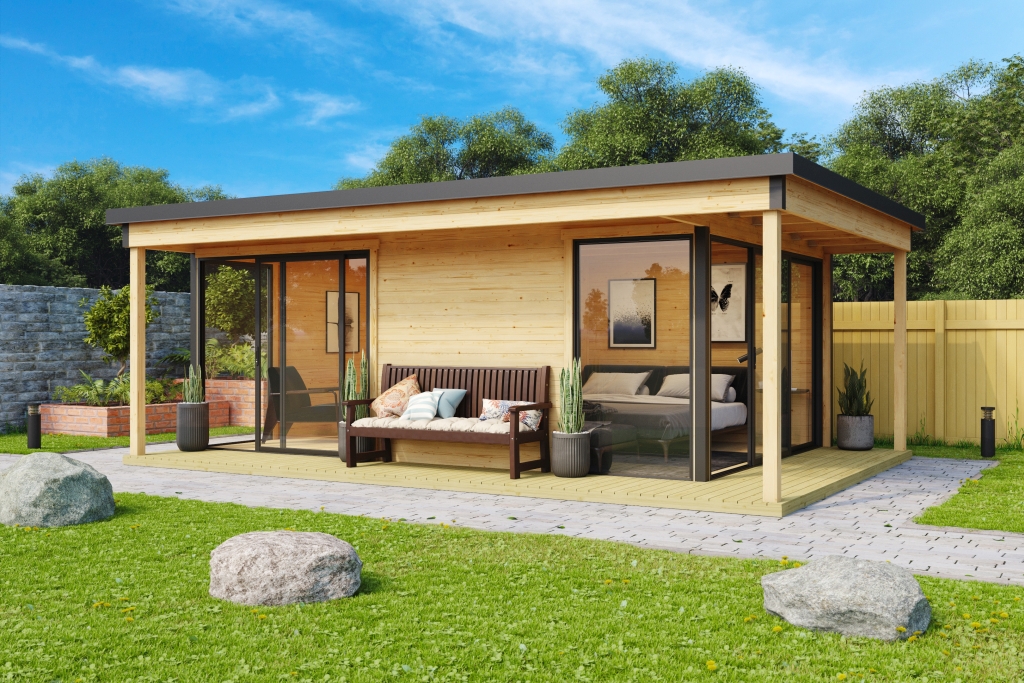

The picture is illustrative
Domeo 3 v2
| Total area | 16.38 m2 |
| Wall area | 509x322 cm |
| Wall thickness | 44 mm |
| Building area | 23.66 m2 |
| Windows | glazed unit |
| Door | liuguks |
| Netarea | 15.52 m2 |
| Terrace | included |
| Terrace area | 7,29 m2 |
| Wall height | 222.3 cm |
| Ridge height | 239.4 cm |
| Roof area | 24.47 m2 |
| Roof overhang | 90 cm |
| Roof slope | 2.4 ° |
| Pakage dimensions | A:630x118x77cm B:245x118x41 cm |
| Package weight | A:1550kg B:420 kg |
Domeo 3 v2 tech. info
Our 'Modern' series delivery-kit generally includes:
- Impregnated base frame and floor joists
- T&G floor boards, floor slats
- All wall details
- Tempered double-glazed windows
- Tempered double-glazed sliding doors or bi-fold doors (depending on the model)
- The roof structure with T&G roof boards, gable end boards and eaves boards.
- Storm fittings
- Installation accessories
- Installation instructions
The delivery-kit does not include:
- Roofing materials - these can be ordered separately, either Onduline self-adhesing aluminium roof film or roofing felt
- Delivery - can be ordered separately
- Installation - can be ordered separately (generally includes delivery)
- Finishing
Approved Estonian Quality !
