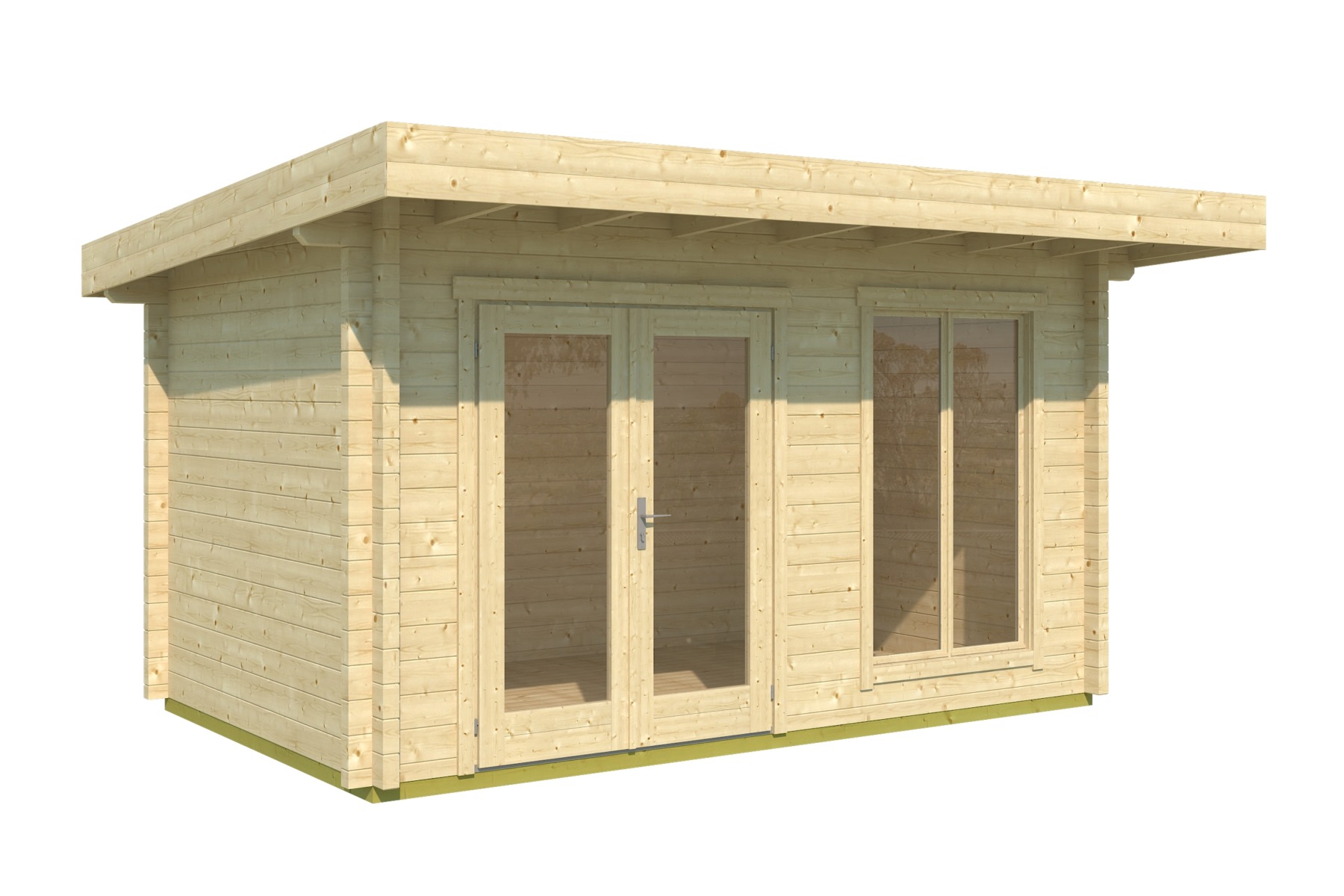

The picture is illustrative
Dorset 71
| Total area | 11.34 m2 |
| Wall area | 270x420 cm |
| Wall thickness | 70 mm |
| Building area | 13.2 m2 |
| Windows | glazed unit |
| Netarea | 9.11 m2 |
| Wall height | 224 cm |
| Ridge height | 231 cm |
| Roof area | 16.56 m2 |
| Roof overhang | 80 cm |
| Roof slope | 3.2 ° |
| Pakage dimensions | 480x114x89 cm |
| Package weight | 1509kg kg |

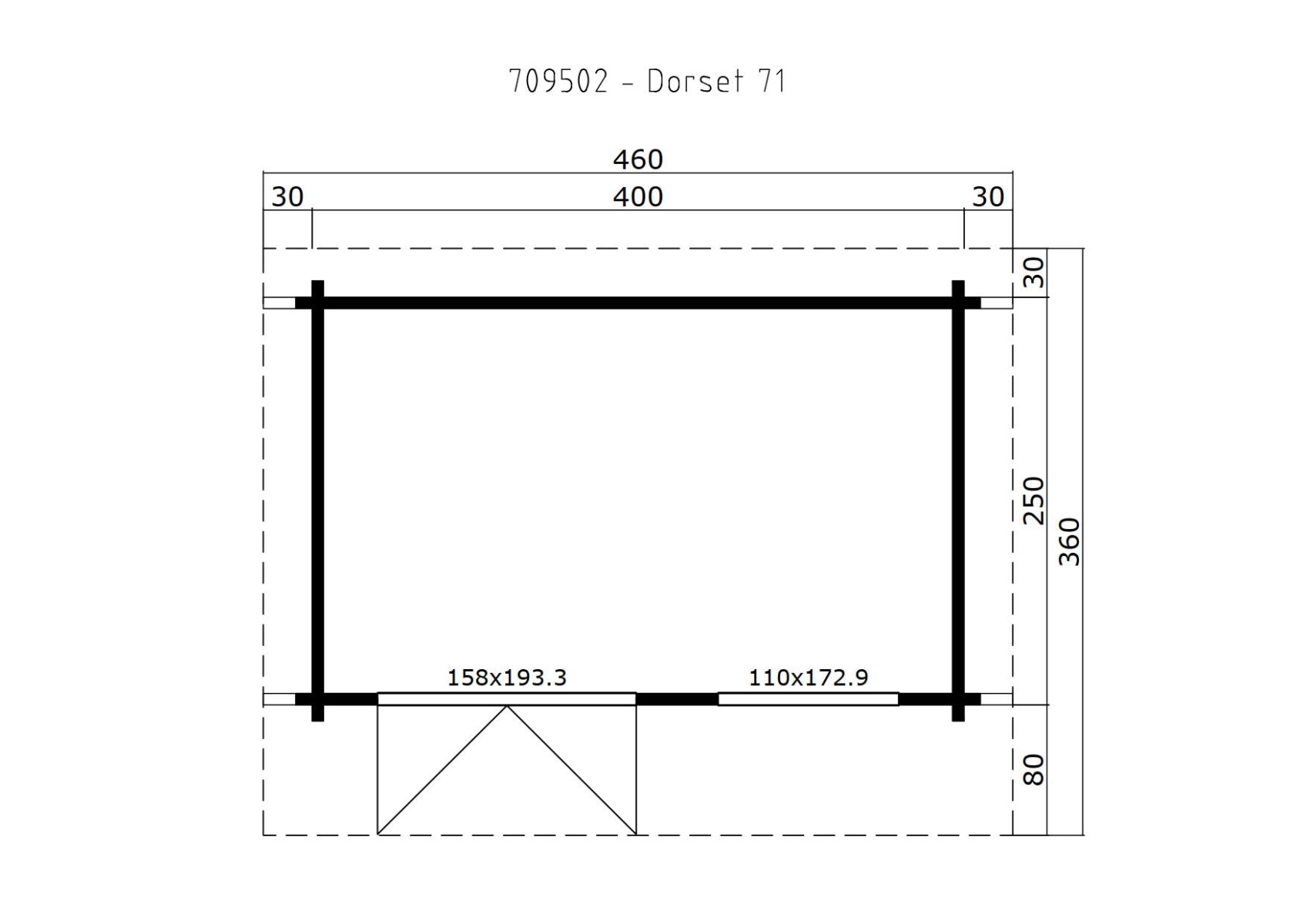

Dorset 71 tech. info
Our 'Lux' series delivery-kit generally includes:
- Impregnated base frame, floor joists and terrace boards (only if terrace is incuded)
- T&G floor boards, floor slats
- All wall details
- Tilt-turn or non-opening windows, with drip mold, glazed, with fittings, interior and exterior slats for the window
- Doors, glazed or solid wood (depending on the model), with lock and handle, including inner and outer boundary slats
- The roof structure with T&G roof boards, gable end boards and eaves boards.
- Storm fittings
- Installation accessories
- Installation instructions
The delivery-kit does not include:
- Roofing materials - these can be ordered separately, either roofing felt, bitumen shingles or Onduline self-adhesing aluminium roof film
- Delivery - can be ordered separately
- Installation - can be ordered separately (generally includes transportation)
- Finishing
Approved Estonian Quality !
